     FAQ
  1. What is BuildingCircles™  Organization?
  2.  What are our resouces and expertise
  3.  What about social readiness for advanced housing?
  4.  What will the homes look like?  (please also see Gallery)
  5.  Why should these dwellings be integrated into the landscape
  6.  Will making the buildings nature-integrated make the interiors dark?
  7.  Are these structures energy efficient?
  8.  What are some BuildingCircles’ choices for materials
  9.  How do BCO's new designs compare with similar alternative housing?
10.  From a global perspective, why make changes in how housing is built?
11.  What is an Accessory Dwelling Unit (ADU)?

Imagine a place ...




1.   What is BuildingCircles™  Organization?

BuildingCircles™  Organization on Vashon-Maury Island (VMI), Washington will help landowners build adult communities to achieve affordable, safe, and comfortable independent living using BuildingCircles community home designs.  We will facilitate these residential communities based on affordable, AdvancedGreen, and nature-integrated housing.  We have a particular interest in creating adult communities now that will be viable in the future as we "age in place."  These projects will demonstrate that intentional community building, using universal design, will serve individuals with special needs of all ages and will result in stronger communities for society.

BuildingCircles Organization is seeking landowners with vision who are excited by this earth-friendly and people-friendly project.  One landowner option is to lease long-term to an organization that manages these rental homes.  This could provide revenue while preserving the land for future generations.  Another option is to use BuildingCircles design ideas to help landowners build primary residences or income-producing Accessory Dwelling Units.

Ultimately, with motivated people, available land, and community support, a comprehensive cooperative community could be built.  The affinity-based community we envision will be based on a commitment to mutual support for aging in place and environmentally and human-friendly land planning, structures, and relationships.



2.   What Are Our Resouces and Expertise?

      Founders and Management

Robert Bornn, President
Laura Worth, MSW, Vice President

Robert Bornn has a longstanding history of environmental and shelter design for alternative communities beginning in the 60's with an alternative residential artist community on an island in Maine.  He published the early 70's journal, Island Quarterly and was inspired by neighboring islander, Buckminster Fuller

Robert Bornn and Laura Worth have moir? than 25 years experience in organizational management, having raised more than $3.5 million to finance their projects.  They have extensive experience building small teams of motivated and expert professionals dedicated to significant projects like medical electronic devices for the sleep industry and the special needs community.  They have managed R?D and designed and managed the clinical research of Robert’s medical device inventions at UCSF and Stanford University.  They obtained FDA permission to market their devices. They are seasoned in joint ventures and product licensing.  Management will contract with qualified organizations for development and construction of energy efficient, nature-integrated homes utilizing universal design.

    Advisors

Nancy Henderson, AIA, LEED, AP founded ArchEcology out of a passion for housing and sustainable design. She has over 13 years experience most of which has been focused on multi-family and mixed use developments.  While at GGLO she chaired the Sustainable Design group for five years.  During that time she lead in-house education efforts which resulted in a third of the office becoming LEED accredited, adoption of an Environmental Policy, and development of an Environmental Management Plan.  Projects pursuing LEED certification went from one in 2001 to more than 15 in 2006.  She also founded the Affordable Housing Action Team to develop a focused expertise in the office to specifically address the unique needs of affordable housing.

Jon McWhirter, Ph.D., P.E., Engineer.  Jon McWhirter has a professional career in energy and energy conversion technology spanning over 25 years.  He has a doctorate in thermal sciences and has worked as a professor, consultant, researcher, and international fellow.  Jon has authored technical papers in several topics relating to energy conversion and storage. Jon teaches engineering part-time for the St. Martin’s University satellite campus in Bremerton.  He is a registered professional engineer in Washington and Idaho. (Jon McWhirter's home page)



3.  What about social readiness for advanced housing?





4.  What will the homes look like?




BuildingCircles Community Homes
Portal-3



These custom-designed, nature-integrated homes can look and feel to your liking.  Only your imagination can limit the possibilities.

The homes appear to “grow” naturally out of the ground.  Gentle contours and landscaped earth-berming rise to the lower sills of recessed windows.  In between the windows and doors the ground will contour gently to the living roof, blending with nature.  In turn the eaves can support vegetation (i.e. vines or other climbing plants) which descend down to the top sill of windows and doors.

Although the homes are sheltered by earth and vegetation, their "above grade" siting will permit abundant light through windows and skylights.

Floor, walls, and roof all flow together for one contiguous, curvilinear, exceptionally strong, monocot structure.  Conventional dome construction can limit liveable space if the dome shape is a hemisphere.  Our BuildingCircles curvilinear designs extend the livable space associated with conventional domes by curving out with two-thirds of the sphere extending above-grade -- like a pumpkin nestled only one-third into the earth. The remaining lower one-third sphere is usable storage space (see illustration of shapes below.)   Pop-out bay windows, window seats, and storage cupboards can also be added, extending out beyond the conventional floor space.



Comparison Between a "Hemi-Dome" and a "Pumpkin Dome"
(described in discussion above)
F-1

Individual choice of landscaping, stonework facades, doors, windows, decks, and courtyards will make each home a unique expression of the owner's taste.  The interiors will also reflect owner choices for maximum comfort, style, and sustainability.


BuildingCircles Community Home
- 2-Bedroom, 2-Bath, 1000 sq. ft. example -
Floor Plan by Nancy Henderson, AIA, LEED, AP
(click picture to enlarge - please also see Gallery)

BuildingCircles Whimsical
"Hobbit House"
Rendering by Nancy Henderson, AIA, LEED, AP
(click picture to enlarge)




BuildingCircles Community Home
Illustrative Site Plan Courtesy of
Barbara Oakrock of Oakrock Design Studio
(click picture to enlarge)










5.  Why should these dwellings be integrated into the landscape?

Because nature-integration can support:

  • A more aesthetically ballanced, healthy and harmonious reconnection to the earth.
  • Better use of hillsides for dwellings and terraced food production, freeing valuable flat land for larger scale agriculture.
  • Local energy and food producing technologies.
  • Cost-efficient shelter construction.
  • Decreased dependency upon distant centralized power production.


Examples of World Architecture Using Nature Integration

A "must-see" for visualizing curvilinear concrete forms
(before and after earth-sheltering)

Earth Houses by Vetsch, a German Architect
http://www.erdhaus.ch/web/index.php?lang=en


Pioneers

Malcolm Wells - underground buildings, earth sheltered architecture, energy efficient houses, passive solar
(http://www.malcolmwells.com)

"New Alchemy Institute Bio-Shelters" by New Alchemy Institute
naibiosh.pdf   (download a 65 MB .pdf)

Rocky Mountain Institute
http://www.rmi.org

Hockerton Housing Project, United Kingdom
http://www.hockertonhousingproject.org.uk/





Sunrise Over Maury
Vashon-Maury Island, Washington
F-2










6.  Will making the buildings nature-integrated make the interiors dark?

No, these buildings can be varied in orientation and have large glazed areas (windows), doors, skylights, light-tubes, courtyards, and a variety of conventional and innovative lighting.  Nature integration can be achieved with a combination of landscaping, contouring, and a certain amount of earth-sheltering. This can provide a buffer for the insulation on the outside of the walls and on the roof.  Insulated shutters can provide for protection during severe storms and insulated curtains can help retain warmth at night.




BuildingCircles Community Homes
P-2
(click picture to enlarge - please also see Gallery)




7.  Are these structures energy efficient?

A premise behind the design philosophy of BuildingCircles is that basic shelter should contribute toward its own internal heating and cooling.  It should be supported by annual solar heat storage and other alternative, non-carbon dioxide producing energy systems.  Relatively large amounts of thermal energy can be derived from daily solar gain and stored seasonally in the ground for interior and hot water heating.  The maximization of this solar gain may best be achieved by utilizing landscape-integrated buildings.   Additionally, the single most effective method for conserving energy from the start is with sufficient high quality insulation.  A portion of heating and cooling can also be achieved with the use of a buried (4'-6') "ground loop" circulating 50? ? F. water.


Meditation Pond
Designed and Built by Robert Bornn
Heather Heights Estate in Saratoga, California
H-7

Illustrates the type of pond that could be
used in the SolarHarvester * system







The Solar Harvester Thermosyphon
Drawing is provided courtesy of
Jon D. McWhirter, Ph.D., P.E.
(click picture for printable version of drawing)



SolarHarvester Solar Heat Collector *

SolarHarvester is the BCO system for collecting solar heat and storing it in an insulated water, ground, or rock medium.

A hermetically sealed, flat-plate, solar heat collector used under water is an example of our nature-integrated design.

It is intended for use year-round in Northern latitude locations such as the Pacific Northwest.

In the version shown in the drawing above, year-round heat storage is in a water cistern under the dwelling.  Further technical details are available.

Heat collection and storage systems using some of the same elements of BCO's SolarHarvester are used worldwide for year-round,  carbon-neutral heating of buildings.






AVERAGE SOLAR INSOLATION,
HORIZONTAL FLAT PLATE
(from National Renewable Energy Laboratory)
by Jon D. McWhirter, Ph.D., P.E
for BuildingCircles Organization
(click chart for printable enlargement)




THERMAL STORAGE AND USE FOR
ANNUAL SOLAR HEAT STORAGE SYSTEM
by Jon D. McWhirter, Ph.D., P.E
for BuildingCircles Organization
(click chart for printable enlargement)
Worldwide Examples of High-Temperature, Underground,
Thermal Energy Storage (HT-UTES) at High Latitudes
International Energy Agency- Energy Conservation through Energy Storage (IEA-ECES)

Drake's Landing Solar Community (Canada)

Alternative Energy Information

Index to Seasonal Thermal Energy Storage Newsletters (Archive 1978-1993)

ASME: Journal of Solar Energy Engineering

Trends in Japan: Novel Energy Storage Systems

Solar Engineering Savings Calculations

University of Wisconsin, Madison, College of Engineering, Information re Concentrating Solar Collector

University of Ontario, Engineering and Applied Sciences, "Thermal Energy Background"

Solar District Heating with a Combined Pit and Duct Storage in the Underground







8.  What are some BuildingCircles’ choices for materials?

  • BuildingCircles will use spray technology (hemcrete or similar renewable material with concrete) over recycled steel to construct unusually strong ferrocement structures.

  •
  • Additionally, sustainable insulative material will be sprayed over the shotcrete.

  •
  • LED lighting (for safer, long-lasting light bulbs), increasingly more affordable (see the op-ed,"A Brighter Future Minus the Mercury").


The homes will be nature-integrated, restoring much of the “footprint” of each building to the ecosystem.  These houses will result in durable, vermin- and fire-resistant structures, capable of supporting living roofs and requiring minimal external energy supply.





BuildingCircles Community Homes
P-3
(click picture to enlarge - please also see Gallery)







9. How do BCO's new designs compare with similar alternative housing?

How do BCO's designs compare with other earth-sheltered or nature-integrated homes with respect to structural integrity, humidity and temperature control, natural lighting, and mold, vermin, and insect control?  How do BCO designs compare to other commercially available concrete dome housing?

BCO homes will be built above-grade.  They will be structurally engineered to meet building code standards for fire and earthquake resistance as well as other structural requirements. They are designed to prevent mold, vermin, and insect infiltration.  Well-designed ventilation will maintain the necessary internal air pressure that will achieve optimal airflow without drafts.

The unique BCO system, Solar Harvester, for annual solar heating and ground-loop cooling will ensure year-round temperature control without the erratic overheating associated with many passive solar heating systems.

Modern ferrocement can be designed and built to improve water resistance and advanced environmental technical design will ensure optimal soil drainage.  Aesthetically and functionally enhancing pre-existing wetlands, or newly constructing them, will help manage storm water runoff.

Conventional above-grade glazing will provide ample natural light using highly energy-efficient, thermal-glass components. Skylights and light-tubes can also be included according to owner preferences.

Above-Grade Dome Housing:  Unlike some above-grade dome housing, BCO homes can appear to “grow” naturally out of the landscape without rigid, bunker-like, geometric shapes.  The concrete structure need not be visible at all unless an owner specifies it for some portion of the home. Natural rock facing can complete the exteriors.

Straw Bale: Although seemingly "green," stucco-covered straw bale, used for insulation, is not sustainable.  It is subject to micro-cracks that admit moisture, mold, and bacteria with growth that finds an optimal environment in the straw.

Cob: While some ancient cob housing remains after centuries, most has long since succumbed to earthquake, flood, and other natural forces.  The recent devastation in Pakistan's earthquake was an example of cob's limitations for human habitat.



10.  From a global perspective, why make changes in how housing is built?

Across a variety of regions, world cultures, and demographics people need more affordable housing.  Conventional houses in developed and developing nations alike are expensive to build and expensive to maintain.  Conventional buildings are subject to damage from earthquake, fire, and vermin.  The footprints of conventional buildings keep reducing the surrounding ecosystem viability.  A continuous increase in CO2 and related emissions can -- and must -- be reversed.

Of global concern, it is estimated that one-third, or more than 2 billion of the world’s people,  are living today in significantly substandard housing.  If uncorrected these slum/shantytown residents will increase to 6 billion people, or two-thirds of the then world’s people, in 20 years.  Virtually all  substantial population growth is expected to occur in developing nations with the highest percentage having either no housing or inadequate housing. As the number of people escalates, efficient use of energy, water, and land for human shelter and agriculture will increase in importance to the point where global security will depend on the fair distribution of life-sustaining resources.



11.  What is an Accessory Dwelling Unit (ADU)?

King County, Washington provides code to guide homeowners in building "Accessory Dwelling Units," balancing the legal resolution of issues that relate to the need for increased  population density in rural areas while still achieving GMA compliance.



Key Requirements for
Detached Accessory Dwelling Units (ADUs)
in Rural King County
(Title 21A.08.030.7.a, Permitted Uses)


King County provides code to guide homeowners in balancing the legal resolution of issues that relate to the need for increased population density in rural areas while still achieving GMA compliance.

(1) There is only one primary single detached dwelling unit.

(2) The rural lot is not less than minimum size for one primary dwelling unit.

(3) The primary dwelling unit or the accessory dwelling unit is owner occupied.

(4) One of the dwelling units shall not exceed a floor area of one thousand square feet.

(5) One additional off-street parking space shall be provided.

(6) The accessory dwelling unit shall be converted to another permitted use or shall be removed if one of the dwelling units ceases to be owner occupied.

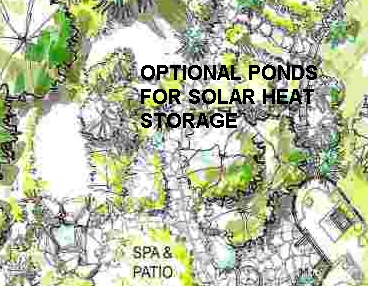

BuildingCircles ADU, Illustrative Site Plan, Courtesy of Barbara Oakrock, Oakrock  Design Studio

BuildingCircles ADU
Illustrative Site Plan Courtesy of
Barbara Oakrock of Oakrock Design Studio
(click picture to enlarge - please also see Gallery)



































A Strategy for Rental Income
and Economic Sustainability
in Rural King County

A BuildingCircles Accessory Dwelling Unit*:



Homeowner Qualifications
for the ADU Strategy

For this project BuildingCircles Organization will partner with individuals who own land and live in a primary residence on a sufficiently large property to meet zoning requirements for adding an ADU; or we will partner with individuals to build a downsized second home on another property.

Other Washington State and King County permitting requirements, such as those related to water use, water run-off, and waste disposal are site-specific and can be discussed in personal consultation.

The BCO development team is commited to working in concert with the many permitting authorities to achieve shared environmental goals.  Participation in King County's Green Building Program can lead to assignment of a no-cost, hands-on County project planner.  They can  advocate for us in managing the permitting process, including analysis of tradeoffs between current site limitations and environmentally sound mitigation.

We will help our clients organize the planning, financing, and construction of an affordable, sustainable, nature-integrated BuildingCircles home utilizing universal design that is conducive to independent living.

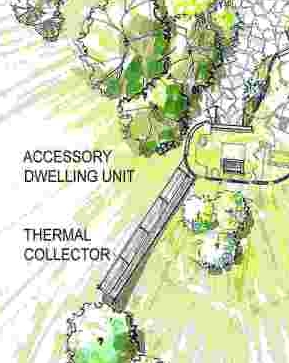

BuildingCircles ADU
Illustrative Site Plan Courtesy of
Barbara Oakrock of Oakrock Design Studio
(click picture to enlarge)




This FAQ is for educational purposes only.  It is not a substitute for professional consultation.  No claim is made or implied that the ideas and inventions herein are applicable to any other manufactured housing, building, or land use project.  Nor do they represent in any way consulting services of any kind.  Nothing herein is an offer to sell, transfer, license, or permit the use of any proprietary method or technology described herein.  Nor should anything herein be construed as an offer to buy, sell, or transfer securities.  Relevant information will be provided upon request.
